How Much VSI Sand Crusher? VSI crusher is used for making sand. Compared with the old type sand making machines, the VSI crusher?has been specially optimized design, which makes the capacity increased by about 30%. Around guard adopts innovative design to improve the service life of over 48%. We can choose the suitable VSI crusher according to your requirement.

• Max Feed Size: <50 mm
• Final Size: sand (1mm, 3mm, 5mm, 8mm, etc.)
• Capacity Range: 20 t0 350 ton/hour
• Application:? iron ore, ?quartz, basalt, granite, etc.

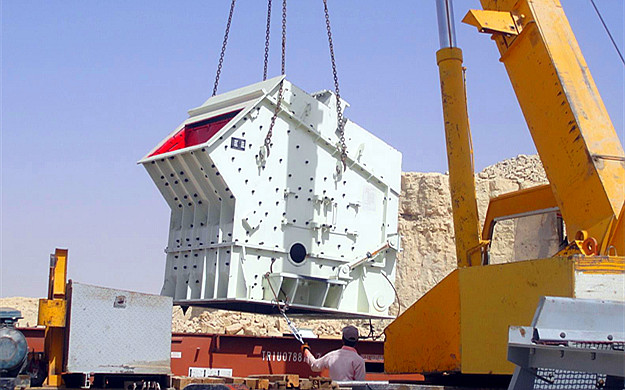

Impact crushers are suitable to crush soft or not hard stone. Its capacity scope are from 50 ton to 400 ton per hour, but have many types. ?For old type, the PF series, the max input size should smaller than 500 mm; For our new type, the ?PFS series, the max input size can reach 700mm. For all type crusher, the output size can meet customers requirement. The output sizes are 0-70mm.

If you have different capacity requirement, please tell us the more information, we have our engineer team, they can design the suitable plant or choose the suitable jaw crusher for you.

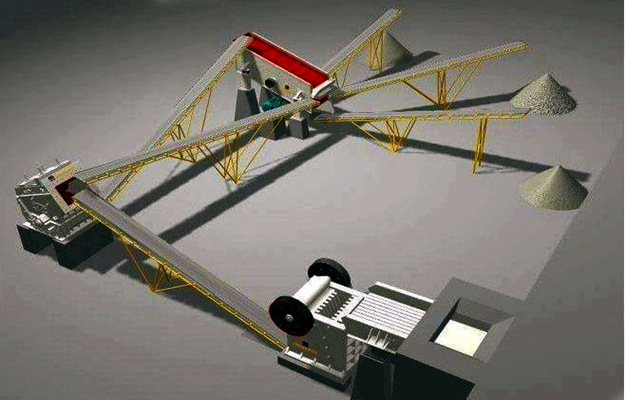

3D design stone crushing plant, you can see the whole scene of the stone crushing plant in the picture. It can help customer choose equipment and design the working layout. The one is a complete plant with Feeder, Jaw crusher, Impact crusher, Vibrating scree. It is suitable for crush the marble?or?limestone, with a capacity 30 to 400 ton/hours. There also have the cone crusher type, which have the capacity from 30 to 600 ton/hours.

You can contact with us for more 3D plant design, and we can design the plant according to your requirement, all are free for you. Get Support & Layout Pictures.

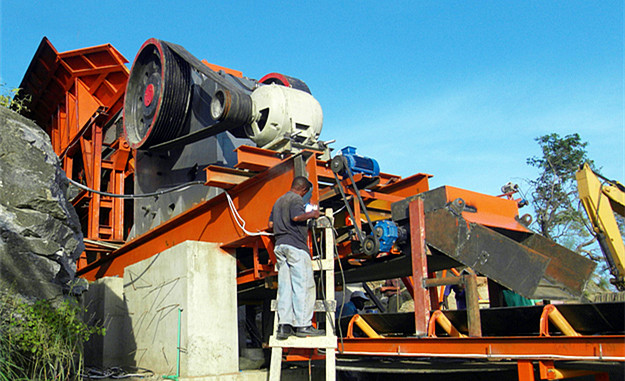

How much 50 TPH river stone crushing plant? In the picture, it is a small river stone crushing plant, with a capacity 50 ton per hour. Following are details of the whole plant.

• Raw material : river stone ? ? ? ?
• Output size : 0-5-10-20 ? ? ? ?
• Capacity (TPH) : 50 ? ? ? ?
• Equipment : ZSW850x3000+PE500x750+2xPEX250x1000+3YZS2160

The materials in the hopper will be fed into the jaw crusher PE500x750 by vibrating feeder ZSW850x3000 continuously and crushed to below 120 mm. At the same time, the raw material with size smaller than your required size will be screened out from the grate bar of the feeder, conveyed together with the discharging products from jaw crusher PE500x750.

This crushing line is a close circle. Moreover, all crushers use one belt conveyor to transport material for saving land.?For the small capacity production line, only with jaw crusher to be both primary crusher and secondary crusher, so as to decrease the production cost to a great extent.

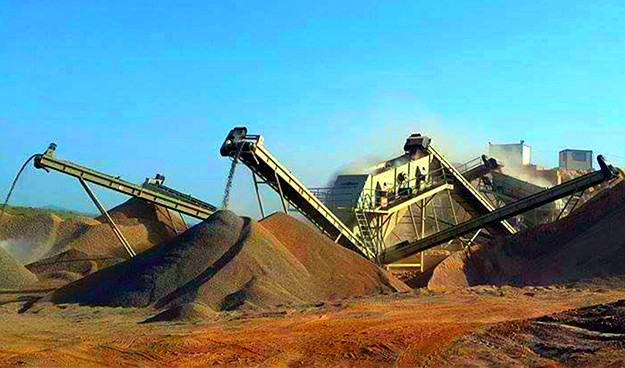

In the picture, it is a aggregate crushing plant with a large crushing capacity 400 ton/hour. The output size are 0-10mm,10-20mm,20-40mm, besides, the also produce to make the sand. The below flowchart is the equipment list. Also, if friend need whole 3D plant design or quotation list, please chat online or leave your requirement in message form. Our team give give you feedback in 24 hours.

Which equipment will be used in quarry plant? For different factors, there have different types of quarry plant. So if you have special requirement, please chat online with our manager, they can provide more support for you.

Quarry equipment are configured feeder, PE600x900 or PE1200 x1500 jaw crusher, HPT220 ?cone crusher, VSI5X series of sand making machine, vibrating screen and belt conveyor.?Our?machine can be configured to your plant with a production?capacity?from?30?to 1000?tons per hour. If you?would like to know more about the quarry gravel processing equipment (gravel processing line) configuration and price, you can chat online or leave your requirement in below message form. we can contact with you ASAP.

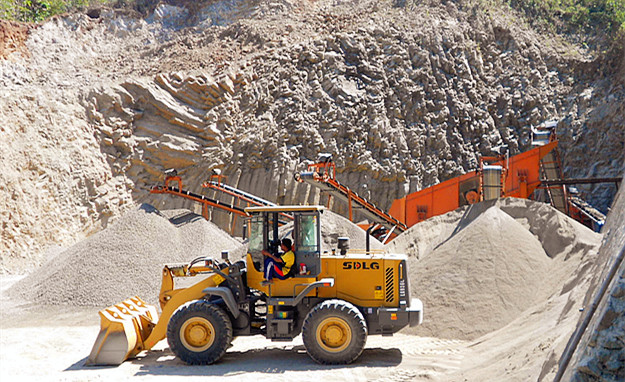

To start quarry business or mining project, there are many factors need to be considered including geography, investment cost, ore property, climate, technology and quarry equipment etc.? How much it need to invest in a quarry crushing plant??If you have more question, please get the support by start a free online chat.

Investment cost reduction is the main factor to be considered in quarry production process. In today’s competitive market, environmental concerns and energy costs are on the rise, in order to reduce the investment cost, we design a speical stone quarry crushing plant based on years’ experience and leading processing technology.

Following is?a?solutions on how to choose the quarry plant.

• Feed Size Range: < 1000MM, 800mm, 500mm, etc.
• Final Size Range: can choose from 1mm to 300mm
• Capacity Range: from 1 ton to 1000 ton per hour
• Applicable Material Type: all types ore (metal ore and non-metallic ore)

Cone crusher have spring crusher, Symons crusher, hydraulic crusher, spring cone which short head, standard, medium-how represent, Symons cone short head and standard models, said out of each cone, materials, production?
Short head cone spring, standard and medium respectively PYD, PYB and PYZ, Simmons short head of CSD, standard CSB. spring cone feed sizes are less than 300mm, production capacity range ?30-1000 tons/hour.
