Three combinations mobile crushing plant, it have vibrating feeder、jaw crusher (or impact crusher)  and vibrating screen together,  can meet customer requirements. These mobile crushers’ capacity ranges are from 50 to 180 ton per hour.

MAIN FEATURE:

Integration complete set of crushing unit, most flexible;
Well adapted, flexible configuration;
Adaptive shift the main crusher system, meet customer individual requirement;
Flexible and mobility parking function, change to work mode quickly.

SPECIFICATIONS:

Four in one type mobile crusher in Kenya, you can contact with us for flowchart and quotation if interested.

• RAW MATERIAL :granite
• INPUT SIZE :350mm
• OUTPUT SIZE :0-20mm
• CAPACITY :30-50TPH

Crushing Process:

1, The material will be fed into Jaw crusher PE400x600 for primary crushing through vibrating feeder ZSW960x3500. Vibrating feeder is used to feed material to jaw crusher evenly and continuously.

2, the material after crushed by jaw crusher will be conveyed to vibrating screen 3YZS1237 for screening: the required size 0–20mm will be discharged and conveyed out as the final products. Meanwhile, the over sized material will be fed into cone crusher PYZ900 for secondary crushing.

3, after secondary crushing from cone crusher PYZ900, the material will be conveyed again to 3YZS1237 for screening: the required size will be discharged and over sized material will return back to cone crusher again for re-crushing, forming a circle until all the final materials reach the required size.

Quotation for Crawler Mobile Crusher, We can choose the suitable one according to your requirement.

Max. Feed Size: < 600 mm
Discharge Size: 6-45 mm
Capacity Range: 50 – 350 Ton/Hour
Successful cases in Algeria, Indonesia, Malaysia, Mongolia, Chile, Peru, etc.

Mobile crusher is a new type mining crusher with feeding, crushing and conveying together. We can also design the primary crushing, secondary crushing, tertiary crushing and combine them with each other flexibly according to your requirement.

> Download the PDF of Crawler Mobile Crusher

How Much Crawler Mobile Crusher? You can get quotation or catalog from us. But in order to choose the suitable for your requirement, We may need more information from you.

• Max. Feed Size:< 550 mm
• Discharge Size:0-40 mm
• Capacity Range:50 to 400 Ton/Hour

Successful cases in Algeria, Indonesia, Malaysia, Mongolia, Chile, Peru, etc.

Mobile crusher is a new type mining crusher with feeding, crushing and conveying together. We can also design the primary crushing, secondary crushing, tertiary crushing and combine them with each other flexibly according to your requirement.

>> Download the PDF of?Crawler Mobile Crusher

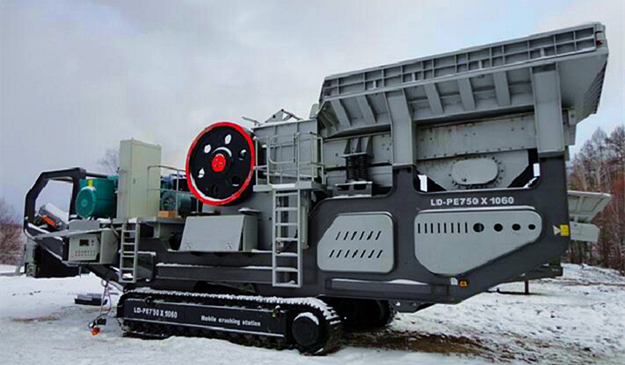

In the picture, it is a mobile type mining and crushing plant which is operating?in Riyadh Saudi Arabia. The capacity is about 120-150 ton per hour, material is basalt. Contact our 24 hours online service for quotation.

This plant is design according to customers’ requirement. Our experienced engineers design a 3 stage crushing solution for him. It includes the primary jaw crusher PE750X1060, secondary CS cone crusher CSB160/C. ?These are equipment in the mobile plant, this plant gives all the final aggregates good quality cubic shape and high level gradation (0-10-19-25mm). This is the most popular layout in the middle east area.

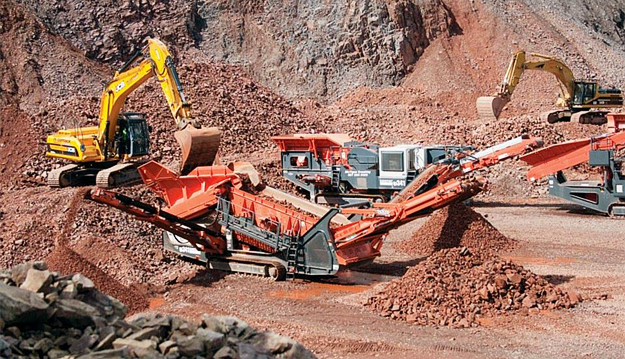

Crawler Type Mobile Crushing Plant is the best choice for mineral ore mining and rock quarry crushing. But when you choose the crawler crusher, you should consider some factors, such as the capacity range (40 to 400 ton/hour), cost investment (higher than stationary crusher), transportation, etc. We have engineer team, you can consult us for support if you would like to know more about the crawler crusher.

• Capacity range: 50 to 400 ton/hour
• Application: every mining and quarry site
• Quotation list: Click to Download
• Service: 24 hours online engineer team

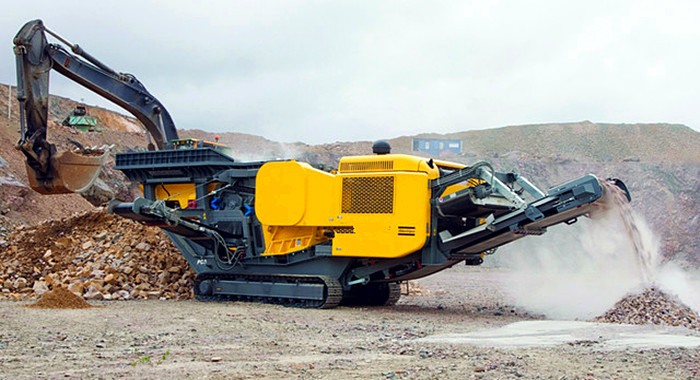

In the picture, ?it is a full type mobile crusher plant, capacity 150-200 ton/hour, operating in Algeria for about 3 years, good performance, if you want to visit or need quotation, contact me.

• Rock Type: Marble ore, Moorstone
• Max. Feed Size: 650 mm
• Capacity: 150-200 ton per hour
• Final product size: 0-5 mm, 5-15mm, 15-30 mm
• Plant: Mobile Jaw Crusher YG114E710 + Mobile Impact Crusher Y4S2160FW1315

Mobile jaw crusher and mobile impact crusher form a complete 200 ton mobile stone crushing plant. Materials which are crushed by mobile jaw crushing plant will send to mobile impact crushing plant for re-crushing and screening.

Track mobile crushing station and tire mobile crushing station output range are how much? Coarse and fine broken crusher?output range? Depends on the material scope of those devices?

Track mobile station capacity range?100-300 TPH, tire mobile station capacity range 50 to 500 TPH;

Generally refers to the coarse broken material crush?into more than 50mm, less than 50mm is thin crushing?; the range depends on the choice of material crusher models.

Portable Limestone Crushing Line price

Raw Material: limestone
Feed Size: 600mm
Output Size Requirement: 0-3/16’’, 3/16’’-3/8’’, 3/8’’-3/4’’
Capacity: 80-100 cubic meter per hour
Working hours: 12 hours per day

Specifications of Portable Crusher YF938J69
